Part Number - AS-UNT1144-0

AS-UNT1144-0 is


Contact us to place an order or request a quote:

1-800-479-8084 |

Rate the AS-UNT1144-0
4.5/5 on 2 reviews

Product Details

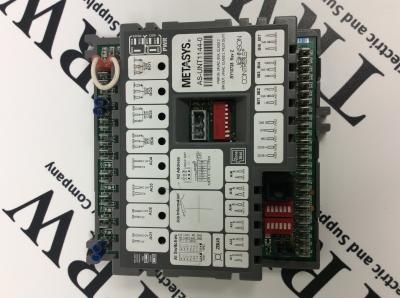

  • Metasys AS Unitary Controller 1144-0 (ASUNT11440)
  • Manufacturer: Johnson Controls
  • Series: Metasys AS

Product Description

The Johnson Controls AS-UNT1144-0 (ASUNT11440) is a Metasys AS series unitary controller with a voltage of 20 to 30VAC. The unitary controller has a frequency of 50/60Hz with a operating power consumption of 7VA. There are also four types of inputs and outputs in the AS-UNT1144-0 controller, as will be shown below.

Here are the four types of inputs and outputs of the AS-UNT1144-0 unitary controller. There are six of both analog and binary inputs. There are also four analog and binary outputs. For each input and output, there is a variety of ranges for voltage, current and even both. The range of the voltage for the AS-UNT1144-0 unitary controller is either 0 to 10VDC or 0 to 2VDC for the analog input; 0 to 30VAC and 0 to 30VDC for the binary input; for the analog output is 0 to 10VDC; and finally for the binary output, the voltage is 24VAC and 5 to 28VDC. The AS-UNT1144-0 unitary controller, the current for each of the inputs and outputs: 1.4mA for the analog input; for the binary input, the current is 4.8mA AC and 3.0mA DC; the analog output is 10mA; and the binary output is 2A AC and 1A DC.

The AS-UNT1144-0 unitary controller may be mounted in two ways, either: mounting it with mounting screws or with a DIN rail. To mount upon the DIN rail, one must simply employ a 35mm DIN rail. Then the AS-UNT1144-0 controller may merely be slid in and locked in place.

Here is the source material that may have been referenced:

Technical Specifications

Part Number: AS-UNT1144-0 (ASUNT11440)
Module Type: Unitary Controller
Voltage/Frequency: 20 to 30VAC, 50/60Hz
Weight: 1lb (approx.)

Related Parts

DX-9100-8996 - Johnson Controls CABINET DOOR MOUNTING
DX-9100-8900 - Johnson Controls WALL MOUNTING BASE

Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Johnson Controls Metasys AS Shipping options vary by location. Call for an accurate quote.


  • The Johnson Controls AS-UNT1144-0 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
