DX-9100-8454


Part Number - DX-9100-8454

DX-9100-8454 is

In Stock Ships Today!In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the DX-9100-8454
4.9/5 on 7 reviews



Product Details

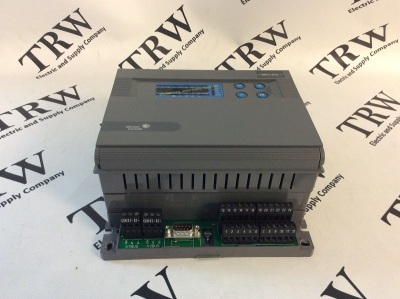

  • Metasys DX Extended Digital Controller (DX91008454)
  • Manufacturer: Johnson Controls
  • Series: Metasys DX

Product Description

The Johnson Controls DX-9100-8454 (DX91008454) is a Metasys DX series extended digital controller. The digital controller has a voltage of 24 VAC and a frequency of 50/60 Hz, with the number of outputs at 17 points. The DX-9100-8545 has eight analog input, eight analog output, eight digital input, and six digital output module ports. The size in height, width, and depths is 7.9in x 7.2in x 3.9in (in metric units, it is 200mm x 184mm x 100mm).

The DX-9100-8454 extended digital controller being a version two of the DX-9100 series, has a N2 Bus and a XT Bus communication link. The N2 Bus link is utilized in order to interact with a managerial unit. XT Bus permits the 9100-8454 to augment input and output potentiality by interacting with up to eight XT-9100 or XTM-905 units. This interacting potentiality can be increased further to 64 remote input output, analog or digital units, but this is determined by what type of extension module it is connected with.

The DX-9100-8454 can be mounted with the panel plate belonging to the digital controller or it may be mounted by the DIN rail. The DX-9100-8454 digital controller can be mounted and connected with the field wiring prior to its installation.

On the XT Bus communication link, up to eight extension controller and a limit of 64 input output controllers can be hooked to a RS-485 port. Also on the DX-9100-8454 extended digital controller, is a RS232-C port that can be employed for local downloading and transmitting software via N2 Bus link.

Here is the source material that may have been referenced:
HTTPS://engineeredair.com/parts/34152s628.pdf


Technical Specifications

Part Number: DX-9100-8454 (DX91008454)
Module Type: Extended Digital Controller
Voltage/Frequency: 24 VAC, 50/60 Hz
Number of Output Ports: 14
Weight: 4.7lbs (2.2kg)


Related Parts

DX-9100-8996 - Johnson Controls CABINET DOOR MOUNTING
DX-9100-8900 - Johnson Controls WALL MOUNTING BASE
DT-9100-8004 - Johnson Controls OPERATOR INTERFACE METASYS LCD DISPLAY



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Johnson Controls Metasys DX Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Johnson Controls DX-9100-8454 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.


Additional Information

TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.






Authorized Distributors

A Johnson Controls Authorized Distributor for METASYSDX is not the only source for Johnson Controls products. Many of the Johnson Controls products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Johnson Controls METASYSDX parts available for purchase.


More Information: 9100-8454, DX-9100 8454, DX 9100 8454, 91008454
