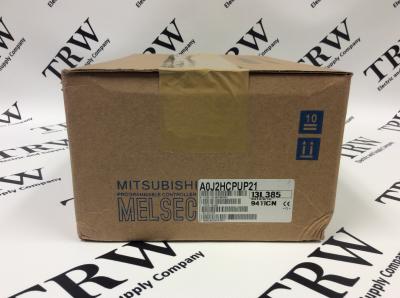

Part Number - A0J2HCPUP21

A0J2HCPUP21 is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the A0J2HCPUP21
5.0/5 on 3 reviews

Product Details

  • A SERIES CPU Battery for A0J2 Controller (A0J2HCPUP21)
  • Manufacturer: Mitsubishi
  • Series: A Series CPUs

Product Description

The Mitsubishi A0J2HCPUP21 (A0J2H-CPU-P21) is an A series data link module. This data link module has a as the total quantity of I/O points of 336pts; however, if an extension base is utilized, the allowable aggregate of points is 480pts. The amount of link points permitted to be input is 512pts, and along with it, 64 bytes. The same quantity of link points may be generated in the A0J2HCPUP21 data link module’s output. The amount of link points that are utilized by its relay and register are the same, 1024pts, but the number of bytes differs: 128 bytes for the relay and 2048 bytes for the register. The A0J2HCPUP21 data link module uses for its memory storage an EPROM. The battery that is utilized is the A6BAT.

To link with other configurations, the A0J2HCPUP21 data link module, since it is a CPU module, can link using a cable to a smaller configuration used for extension purposes. After this is done, another cable may be utilized to link with the extension base. These bases can be of the A5[]B(S1) or it may be the A6[]B(S1). Placed upon the extension bases may be I/O modules or modules that have distinctive functions.

On the A0J2HCPUP21 data link module, there is a terminal block that receives power from the power supply module it attaches to. These terminals are able to accept either 100 or 200VAC. There are also a number of switches such as a DIP, two switches that are able allot the “station number”, and a switch which deputizes the data link module’s current mode.

Here is the manual referenced:

Technical Specifications

Part Number: A0J2HCPUP21 (A0J2H-CPU-P21)
Module Type: Data Link Unit
Number of Points: 336pt
Memory Capacity:32k bytes
Weight: 2.56lbs (1.16kg)

Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi A Series CPUs Shipping options vary by location. Call for an accurate quote.


  • The Mitsubishi A0J2HCPUP21 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
