Product Details

  • E1000 TOUCHSCREEN OPERATOR INTERFACE, 6.4 INCH, 24V DC (E1071)
  • Manufacturer: Mitsubishi
  • Series: E1000

Product Description

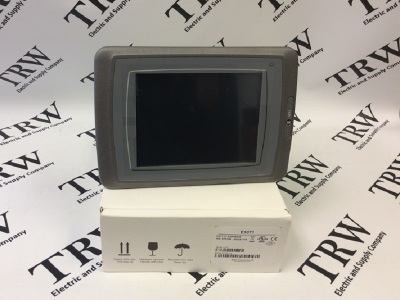

The Beijer E1071 (E-1071) is an operator interface panel from the E1000 series. The front panel’s measurements are 219mm by 154mm by 6mm (8.62in by 6.06in by 0.24in). The display area’s (of the panel) is 131.5mm by 98.6mm (5.18in by 3.88in). The screen size, if computed diagonally, is 6.5in.

The E1071 is given a TFT-LCD (Thin-Film Transistor Liquid Crystal Display) display. This means that each pixel on the display has a transistor of its own on the glass. This permits the user to manage what is produced from the screen well; however, viewing from an angle is not optimal due to how the screen is manufactured. This screen has 640 by 480 pixels which may manifest up to 64K different colors. The touchscreen of the E1071 has polyester on glass and is given an overlay of Autotex F157 or F207. The reverse side has a powder-coated aluminum material. The front panel of the operator interface panel has a seal the meets the IP66 enclosure rating. This rating completely protects the panel from any impinging dust and also protects it from direct sprays issued from a high pressure jet. The rear panel is given an enclosure rating of IP20. This safeguards the E1071from finger smudges or other stains made by contact from small objects.

The E1071 has a RS-422/RS-485 serial port that has 25 pins and a RS-232C serial port which has 9-pins. These ports may use an USB cord whose maximum output current is 500mA. Secondly, a shielded RJ45 connector may be utilized to link the E1071 panel to the Ethernet system.

Here is the source material referenced:
https://www.avinasanat.com/wp-content/uploads/products/E1000-Series_ServiceMaintenance_MA00758A.pdf;
https://www.mewdevenezuela.com/productos/descargasProductos/E1000_Models_DataSheet.pdf;
https://www.enclosurecompany.com/ip-ratings-explained.php;
https://www.lifewire.com/what-is-tft-lcd-578664;
http://autotype.macdermid.com/upload/documents/autotex.pdf


Technical Specifications

Part Number: E1071 (E-1071)
Module Type: Operator Interface Panel
Weight: 2.64lbs (1.2kg)
Panel Size: 6.5 inch
Pixels: 640 x 480 pixels
Storage: 12MB



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi E1000 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi E1071 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
