Part Number - HF-KP23B

HF-KP23B is

In Stock Ships Today!

Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com

Rate the HF-KP23B
Be the 1st to rate this product listing!

Product Details

  • HF Series AC Servo Motor with Brake (HFKP23B)
  • Manufacturer: Mitsubishi
  • Series: HF Series

Product Description

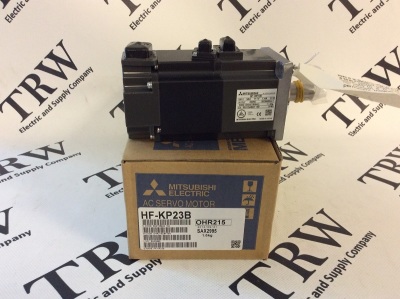

The Mitsubishi HF-KP23B (HFKP23B) is a 200W HF series AC servo motor with brake. The torque of the servo motor with brake is 0.64 (N x m) or 90.6 (oz x in) while the greatest torque that is granted 1.9 (N x m) or 269 (oz x in) when it is not being increased. The average speed of the servo motor with brake is normally 3000rpm, although this speed is allowed to be doubled, being 6000rpm. Even for a short time the HF-KP23B servo motor with brake can be pushed to perform at a speed of 6900rpm. Also, the moment of inertia for this servo motor with brake is 0.31 J(x10^-4kg x m^2) or 1.69 J(oz x in^2).

The four servo amplifiers that may attach to the HF-KP23B servo motor with brake are the MR-J3-20A, MR-J3-20B, MR-J3-20B-RJ006, and MR-J3-20T. These may be simply attached to the CN2 port of any one of the available servo amplifiers wherever it is positioned. Then, specifically for the MR-J3-20A servo amplifier, the servo motor with brake may also connect to the CNP3 (U, V, W) connector which is the bottommost connector for its power supply. The connection must be made at this servo amplifier’s CNP3 connector which is positioned exactly as the former servo amplifier.

This HF-KP23B servo motor with brake is a low inertia motor, letting it be applied to multiple mechanism.

These are the measurements of the HF-KP23B servo motor with brake. The length is 146.1mm (5.75in) and the width is 60mm (2.36in), while the height is a little greater.

Here is the source material referenced:

Technical Specifications

Part Number: HF-KP23B (HFKP23B)
Module Type: Servo Motor with Brake
Voltage: 111V
RPM: 3000r/min
Output Wattage: 200W
Weight: 3.6lbs (1.6kg)

Related Parts

HF-JP103K - Mitsubishi HF Series Servo Motor with Keyway
HG-JR353W0C - Mitsubishi HG Servo Motor
HG-JR203B - Mitsubishi HG Servo Motor with Brake

Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi HF Series Shipping options vary by location. Call for an accurate quote.


  • The Mitsubishi HF-KP23B comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
