HC-SFS352B


Part Number - HC-SFS352B

This HC-SFS352B is

In Stock Ships Today!


\"bulletNew In Stock

Call 1-800-479-8084

Rate the HC-SFS352B
Be the 1st to rate this product listing!





Product Details

  • Melservo HC Servo Motor with Brake (HCSFS352B)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC

Product Description

The Mitsubishi HC-SFS352B (HCSFS352B) is a 3.5kW Melservo HC series servo motor with a brake. The torque is normally 16.7 (N x m) or 2364.7 (oz x in) in this servo motor; although, the torque may be permitted to attain a torque of 50.1 (N x m) or 7094.2 (oz x in). The current is normally 17.0A, but it may operate at a higher speed of 51.0A. The speed of HC-SFS352B servo amplifier is 2000rpm that can nevertheless run at a higher rate than what is evaluated at 2500rpm. The servo motor may even momentarily operate at speeds of 2875rpm. Finally, the moment of inertia has been calculated to be 92.0 J(x10^-4kg x m^2) or 503 J(oz x in^2).

There are only a few servo amplifiers which can be attached to the HC-SFS352B servo motor. They are these: the MR-J2S-350CP, MR-J2S-350CL, MR-J2S-200A, and MR-J2S-200B. This is how they may be applied. Primarily, the CN2 port of the servo amplifier can link to the encoder of the servo motor. The nexus is made by the encoder cable which interlinks the two products. Secondly, the HC-SFS352B servo motor needs to link with the servo amplifier for a power supply. The way to do this is by connecting the servo motor with a power supply cable to the three screw terminals of U, V, and W, which are lined up on the face of the servo amplifier.

The HC-SFS352B servo motor is a medium capacity and inertia motor. For that reason it is from the HC-SFS series.

Here is the source material that may have been referenced:
http://dl.mitsubishielectric.com/dl/fa/document/catalog/servo/l03007/l03007d.pdf;
http://www.andreoniautomazione.it/mr-j2-super-catalogue_gb.pdf


Technical Specifications

Part Number: HC-SFS352B (HCSFS352B)
Module Type: Servo Motor with Brake
Voltage: 146V
RPM: 2000rpm
Output Wattage: 3.5kW
Weight: 55.1lbs (25kg)


Related Parts

MR-J2S-350A - Mitsubishi Melservo MR-J2 Servo Amplifier, 3500W, 200V (MRJ2S350A)
MR-J2S-350B - Mitsubishi Melservo MR-J2 Servo Amplifier, SSC NETWORK (MRJ2S350B)
HC-SFS352 - Mitsubishi Melservo HC, Servo Motor (HCSFS352)

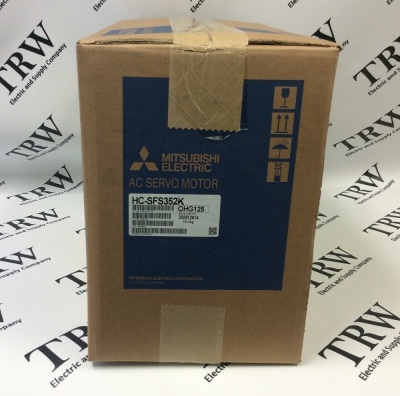

HC-SFS352K - Mitsubishi Melservo HC Servo Motor with Key, 3.5KW (HCSFS352K)
HC-SFS352BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 3.5KW (HCSFS352BK)



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi MELSERVO HC Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi HC-SFS352B comes with a one-year warranty.
