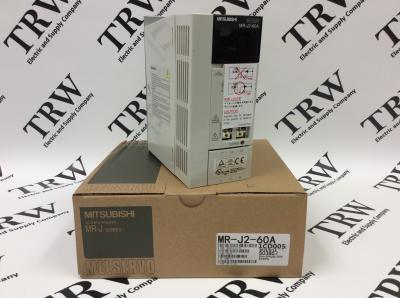

- Melservo MR-J2 Servo Amplifier (MRJ260A)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J2
Product DescriptionThe Mitsubishi MR-J2-60A (MRJ260A) is a servo amplifier from the Melservo MR-J2 series. The power supply has a voltage range of 200 to 230VAC when the voltage is working on 3-phases; on the other hand, the servo amplifier may also run on 1-phase which has a voltage of 230-VAC. The 3-phase voltage of the MR-J2-60A servo amplifier is permitted to fluctuate between 170 to 253VAC; the 1-phase voltage may be sanctioned to span from 207 to 253VAC. The frequency is 50/60Hz, but is allowed to waver between -5% to +5%.
The MR-J2-60A servo amplifier is able to link with a couple of servo motors, the applicable servo motors are as follows: the HA-FF63 and HC-SF52. The chosen servo motor may attach to the servo amplifier in two areas which will be outlined below.
The MR-J2-60A servo amplifier has four ports. The CN1A port attaches to an output control module that is a specific pulse train output from the A series or FX series. The CN1B port may attach to terminal block that may accept any signal. The CN2 port may attach to the encoder of a servo motor chosen. It is to be also noted that whatever servo motor may also connect to the power supply of the MR-J2-60A servo amplifier by the U, V, and W screw terminals. Then the CN3 port concatenates to a personal computer utilizing a RS-232C communication. Lastly, the MR-J2-60A servo amplifier connects to a magnetic contactor and a circuit breaker by the L1, L2, and L3 screw terminals.
Here is the manual that may have been referenced:
Technical SpecificationsPart Number: MR-J2-60A (MRJ260A)
Module Type: Servo Amplifier
Voltage/Frequency: 200 to 230VAC, 3-phase 50/60Hz; 230VAC, 1-phase 50/60Hz
Output Wattage: 600W
Weight: 2.45lbs (1.1kg)
Related PartsMR-J2-60B - Mitsubishi Melservo MR-J2 Servo Amplifier, SSC NETWORK (MRJ260B)
HC-SF52 - Mitsubishi Melservo HC Servo Motor, 0.5KW (HCSF52)
HC-SF52B - Mitsubishi Melservo HC Servo Motor with Brake, 500W (HCSF52B)
HC-SF52K - Mitsubishi Melservo HC Servo Motor with Key, 500W (HCSF52K)
HC-SF52BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 500W (HCSF52BK)
HC-SF53B - Mitsubishi Melservo HC Servo Motor with Brake (HCSF53B)
HC-SF53K - Mitsubishi Melservo HC Servo Motor with KEY, 500W (HCSF53K)
