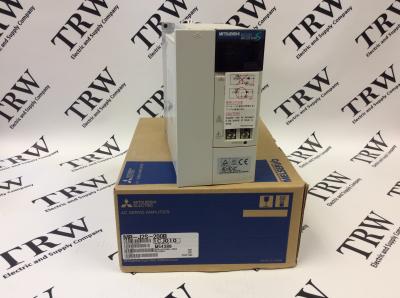

- Melservo MR-J2 Servo Amplifier 200V (MRJ2S200B)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J2
Product DescriptionThe Mitsubishi MR-J2S-200B (MRJ2S200B) is a Melservo MR-J2 series servo amplifier with a voltage of 200V. The servo amplifier provides an output wattage of 2kW, it inputs 200-230 Volts and the frequency is 50-60Hz. The output is 170 volts, its output is frequency 0-360Hz. The servo amplifier also has a RS-232C/RS-422 cable for interfacing with a personal computer. As a member of the MR-J2S-B servo amplifier, the MR-J2S-200B can assist connecting with other drives by the utilization of the Servo System Control Network (SSCNET). This connection allows the servo amplifier to manage the motor brake.
The MR-J2S-200B amplifier can be hooked to a CN1A adapter to a motion controller (A171SH, A173UH, A172SH, Q172, Q173) or allocating controllers (A1SD75M, QD75M) that is compatible with SSC Network. A CN1B connector can be employed to connect to the SSC Network. A CN1B connector is also deployed in attaching numerous servo amplifiers and motors may be connected to the MR-J2S-200B amplifier by a CN2 connector. A CN3 connector is utilized to connect this amplifier with a personal computer that utilizes a MR Configurator. This servo amplifier can be paired with a number of motors and these are the applicable motors the HC-SFS152, HC-SFS202, HC-RFS153 and HC-RFS103. There are a couple of ways to apply the motor to this amplifier which are shown in the manual. There is also a battery compartment in the MR-J2S-200B amplifier for an optional MR-BAT Battery.
The environment of the MR-J2S-200B amplifier should maintain an ambient temperature between 0 and 55 degrees Celsius (32 to 131 degrees Fahrenheit) to keep the normative operations.
Here are the manuals that may have been referenced:
Technical SpecificationsPart Number: MR-J2S-200B (MRJ2S200B)
Module Type: Servo Amplifier
Voltage/Frequency: 200-230V AC, 50/60Hz, 3 Phase
Output Wattage: 2kW
Weight: 4.4lbs (2.0kg)
Related PartsMR-J2S-200A - Mitsubishi Melservo MR-J2 Servo Amplifier (MRJ2S200A)
HF-KP43B - Mitsubishi HF Series Servo Motor with Brake (HFKP43B)
HC-MFS73BK - Mitsubishi Melservo HC Servo Motor with Brake Key (HCMFS73BK)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi MELSERVO MR-J2 Shipping options vary by location. Call for an accurate quote.
- The Mitsubishi MR-J2S-200B comes with a one-year warranty.
