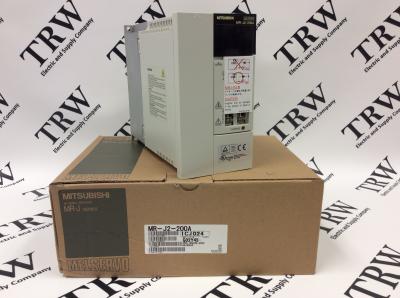

- Melservo MR-J2 Servo Amplifier (MRJ2200A)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J2
Product DescriptionThe Mitsubishi MR-J2-200A (MRJ2200A) is a Melservo MR-J2 series servo amplifier with an output wattage of 2kW. The servo amplifier has a voltage itself that spans from 200 to 230VAC with a frequency 50/60Hz. The voltage may be permitted to oscillate between the extremes of 170 to 253VAC with the voltage running on 3-phases. The frequency may span +5% to -5% from its initial frequency of 50/60Hz. The MR-J2-200A servo amplifier has a frequency response has a speed of 250Hz.
There are four servo motors from the HC-SF series or HC-RF series in which the MR-J2-200A servo amplifier may connect to: HA-SF152, HA-SF202, HC-RF103, and HC-RF153.
The MR-J2-200A servo amplifier has multiple ports. The CN1A port may connect to an output control module that a manage pulse trains; these are typically FX series or A series. Next to that is the CN1B port that may attach to a terminal block that may link to every signal. Then the CN3 port may connect to a personal computer by utilizing software creating a RS-232C communication. The last port on the MR-J2-200A servo amplifier is the CN2 port. This port connects the servo amplifier to the encoder of one of the four mentioned servo motors. The servo motor chosen may also connect using a servo motor power cable to the servo amplifier’s ‘U, V, and W’ screw terminal. The other three screw terminals of the servo amplifier are the ‘L1, L2, and L3’. These screws can the concatenate to a magnetic contactor which then attaches to a power supply.
Here is the manual referenced:
Technical SpecificationsPart Number: MR-J2-200A (MRJ2200A)
Module Type: Servo Amplifier
Voltage/Frequency: 200 to 230VAC 3-phase, 50/60Hz
Output Wattage: 2kW
Weight: 4.4lbs (2.0kg)
Related PartsMR-J2-200B - Mitsubishi Melservo MR-J2 Servo Amplifier (MRJ2200B)
HC-SF152 - Mitsubishi Melservo HC Servo Motor (HCSF152)
HC-SF202 - Mitsubishi Melservo HC Servo Motor (HCSF202)
HC-SF202B - Mitsubishi Melservo HC Servo Motor with Brake (HCSF202B)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi MELSERVO MR-J2 Shipping options vary by location. Call for an accurate quote.
- The Mitsubishi MR-J2-200A comes with a one-year warranty.
