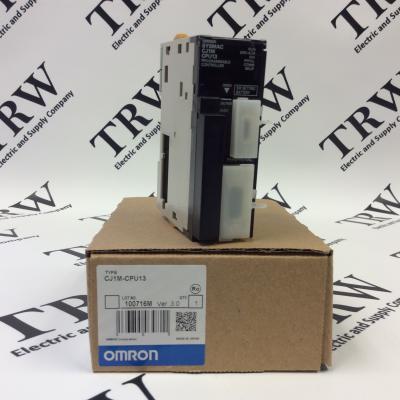

CJ1M-CPU13


Part Number - CJ1M-CPU13

Product PDF: pdf image

This CJ1M-CPU13 is

In Stock Ships Today!


\"bulletNew In Stock

Call 1-800-479-8084

Rate the CJ1M-CPU13
4.0/5 on 3 reviews





Product Details

  • CJ1 Input Output Control Module (CJ1MCPU13)
  • Manufacturer: Omron
  • Series: CJ1

Product Description

The Omron CJ1M-CPU13 (CJ1MCPU13) is a control module with input output points from the CJ1 series. The maximum number of input output points is 640 points with the maximum number of mountable control modules are 20 modules. The program capacity is 20k steps and the data area memory capacity of this input output control module is 32k words, with all of them being in the data memory (DM). The current consumption is 580mA at 5V. The current in the CJ1M-CPU13 may increase by 150mA for every adapter used of the applicable adapters: NT-AL001 RS-232C/RS-422A, it is increased by 40mA if the CJ1W-CIF11 RS-422A adapter is used.

There are two ports on the CJ1M-CPU13 input output control module, there is the RS-232C port and the peripheral port. The RS-232C can link to many different program devices other than program consoles, host computers, and a variety of other apparatuses. The peripheral port can connect to programming devices along with a console or a host computer. This port on the CJ1M-CPU13 can convert to a RS-232C port if the CS1W-CN118 or CS1W-CN[]26.

The CJ1M-CPU13 input output control module has 288 tasks. This may be divided into two types of tasks: the cyclic tasks and the interrupt tasks. There are 32 cyclic tasks and 256 interrupt tasks. The former tasks are accomplished every cycles and are managed by the TKON(820) and TKOF(821) instructions. There are four types of interrupt tasks that the CJ1M-CPU13 may underwrite, specifically up to 1 power OFF interrupt tasks, 2 scheduled interrupt tasks, 32 I/O interrupt tasks, and 256 external interrupt tasks.

Here are the source material that may have been referenced:
http://www.ia.omron.com/data_pdf/cat/cj1m-cpu_ds_e_6_2_csm1610.pdf?id=1638


Technical Specifications

Part Number: CJ1M-CPU13 (CJ1MCPU13)
Module Type: Control Module
Number of Input Output Points: 640
Weight: 1lb (approx.)


Related Parts

CJ1M-CPU12 - Omron CJ1 Programmable Control Module
CJ1W-DA08C - Omron CJ1 Control Module
CJ1M-CPU21 - Omron CJ1 Control Module



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CJ1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CJ1M-CPU13 comes with a one-year warranty.
