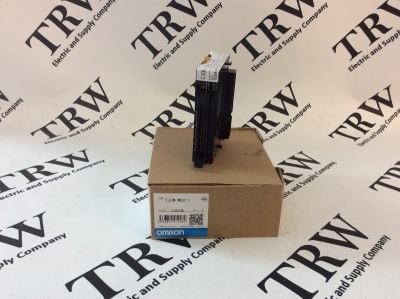

CJ2M-MD211


Part Number - CJ2M-MD211

Product PDF: pdf image

The CJ2M-MD211 is

Available


Call 1-800-479-8084

Rate the CJ2M-MD211
4.8/5 on 4 reviews




Product Details

  • CJ2 Input Output Control Module (CJ2MMD211)
  • Manufacturer: Omron
  • Series: CJ2

Product Description

The Omron CJ2M-MD211 (CJ2MMD211) is a CJ2 input output control module with pulse points. There are two control modules from the CJ2M-MD21[] family that have 10 high-speed inputs and 6 high-speed output. Both control modules can use many different input or output points that will be enumerated later. The CJ2M-MD211 control module is distinguished from the other one by being of the sinking type. The pulse input output control module can be connected with a fellow pulse I/O module and the CJ2M-CPU or just the CPU module.

The miscellaneous input output control module can use are adumbrated here. The inputs that can be used: the general-purpose inputs, the interrupt inputs, the quick-response inputs, the high-speed counters, or the origin search inputs. The outputs that can be used: the general-purpose outputs, the pulse outputs, the origin search outputs, or the PWM outputs. Normal inputs that the CJ2M-MD211 input output control module can be utilized by any input terminal. The interrupt inputs may be used by inputs 00-03, 10-13, and the quick-response inputs do the same. The high-speed inputs can be used by terminal inputs 02-03, 06-09, 12-13, and 16-19. The normal outputs are used by all output terminals. The pulse outputs use 00-03 and 10-13. The origin search outputs use 04-05 and 14-15, and the PWM outputs use 04-05 and 14-15.

The CJ2M-MD211 input output control module has a current consumption of 0.08 Amp if the conditional voltage is 5V and there is no current consumption of 24V. The standards of the pulse control modules are UC1, N, L, and CE.

Here is the source material that may have been referenced:
https://www.mouser.sg/datasheet/2/307/cj2m-cpu3__-cpu1_-md21__ds_e_9_1_csm2201-596150.pdf
http://www.ia.omron.com/data_pdf/cat/cj2m-cpu3__-cpu1_-md21__ds_e_12_2_csm2201.pdf?id=2712


Technical Specifications

Part Number: CJ2M-MD211 (CJ2MMD211)
Module Type: Control Module
Inputs Points: 10 High-Speed
Output Points: 6 High-Speed
Weight: 1lb (approx.)


Related Parts

CQM1-IA121 - Omron CQM1 Input Control Module
CQM1-ID211 - Omron CQM1 Input Control Module
CQM1-IPS02 - Omron Sysmac PLC POWER SUPPLY Control Module



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CJ2 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CJ2M-MD211 comes with a one-year warranty.
