CQM1-OD212


Part Number - CQM1-OD212

Product PDF: pdf image

This CQM1-OD212 is

In Stock Ships Today!In Stock Ships Today!In Stock Ships Today!


\"bulletNew In Stock\"bulletRefurbished In Stock\"bulletNew Surplus In Stock

Call 1-800-479-8084

Rate the CQM1-OD212
4.0/5 on 2 reviews





Product Details

  • CQM1 Transistor Output Control Module (CQM1OD212)
  • Manufacturer: Omron
  • Series: CQM1

Product Description

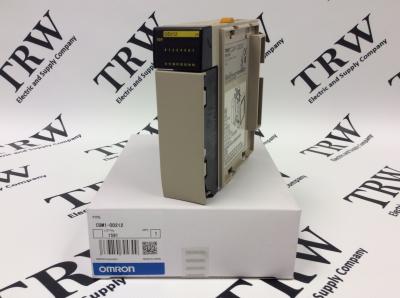

The Omron CQM1-OD212 (CQM1OD212) is a transistor output control module from the CQM1 series. This control module has a terminal block that has 18 screw terminals which are called A0-A8 and B0-B8. The CQM1-OD212 control module also has 16 output points which means that every point must be produced by a corresponding screw terminal except for the last two, that is, A8 and B8. A8 is a COM terminal while B8 is a (+) voltage. These points all generate from one circuit.

The CQM1-OD212 transistor output control module has a maximum switching capacity of 50mA when it is at 4.5VDC all the way to 300mA at 26.4VDC and the internal consumption of the module is 170mA when it is at 5VDC. The power supply for this module is a 40mA at minimum, this is because it has 2.5mA for every point on (there are 16 output points) at a voltage of 24VDC ±10%. Lastly, some other specifications of the CQM1-OD212 are it leakage current, residual voltage, and its delays. The leakage current of the module is at 0.1mA maximum and a residual current of 0.8mA. There are both ON and OFF delays, the ON delay is 0.1ms at most and its OFF delay is 0.4ms.

The CQM1-OD212 transistor output control module when it is in an Omron configuration must be situated next to a CPU module or some other specialized input output modules. The output control module is attached to other modules by the connectors which are built-in to the side of the control module and are secured by its sliders.

Here is the source material that may have been referenced:
https://www.farnell.com/datasheets/1699916.pdf


Technical Specifications

Module Type: CQM1-OD212 Transistor Output Control Module
Number of Outputs: 16 points
Weight: 0.4lbs (0.18kg)


Related Parts

CQM1-IA121 - Omron CQM1 Input Control Module
CQM1-ID211 - Omron CQM1 Input Control Module
CQM1-IPS02 - Omron Sysmac PLC POWER SUPPLY Control Module



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron CQM1 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron CQM1-OD212 comes with a one-year warranty.
