R88D-WTA5HL


Part Number - R88D-WTA5HL

R88D-WTA5HL is

In Stock Ships Today!


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the R88D-WTA5HL
4.0/5 on 1 review



Product Details

  • R88D Servo Drive 1 Phase 100V 50W (R88DWTA5HL)
  • Manufacturer: Omron
  • Series: R88D

Product Description

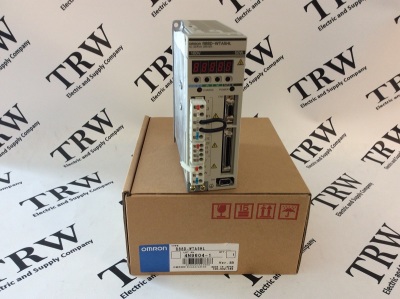

The Omron R88D-WTA5HL (R88DWTA5HL) is a 50W R88D series servo drive, 1-phase. The heat produced by the servo drive differs on the circuit. The main circuit may generate 5.2W and the control circuit produces 13W. The power supplies main circuit and control circuit both operate at 1-phase and their voltage spans from 100 to 115VAC. Yet, the voltage is authorized to have an increased voltage of 85-127VAC. The frequency of the R88D-WTA5HL servo drive is 50/60Hz. The current is generally 0.95A, but it may be able to reach 2.9A, but this can only be sustained for a short time.

There are only two servo motors that are applicable to the R88D-WTA5HL servo motor. These are the servo motors: W05030S and W05030L. These servo motors have a rotation speed of 3000rpm. The CN2 port on the servo drive can attach to the encoder of either of these servo motors. The connection is accomplished by an encoder cable which serves as an intermediary. Then the terminals residing on top of the R88D-WTA5HL servo drive may attach to the other open connector on the delegated servo drive. The cable made its linkage with the power cable.

The CN1 port on the R88D-WTA5HL servo drive can link to many Omron control module by utilizing a I/O cable. Then, cable used must be configurable to the control module that is employed. The CN8 port on the servo drive must connect to this battery, the R88A-BAT01W. The R88D-WTA5HL servo drive may also connect to parameter calculators with the CN3 port.

Here are the source material that may have been referenced:
https://www.fa.omron.com.cn/data_pdf/closed/mnu/i531-e1-09_r88m-w_r88d-w.pdf?id=66


Technical Specifications

Part Number: R88D-WTA5HL (R88DWTA5HL)
Module Type: Servo Drive
Voltage/Frequency: 100-115VAC, 1-phase 50/60Hz
Output Wattage: 50W
Weight: 1.76lbs (0.8kg)


Related Parts

CJ1W-DA021 - CJ1 Control Module (CJ1WDA021)
CJ1W-DA08V - CJ1 Control Module
CJ1W-OC211 - CJ1 Output Control Module



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Omron R88D Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Omron R88D-WTA5HL comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
